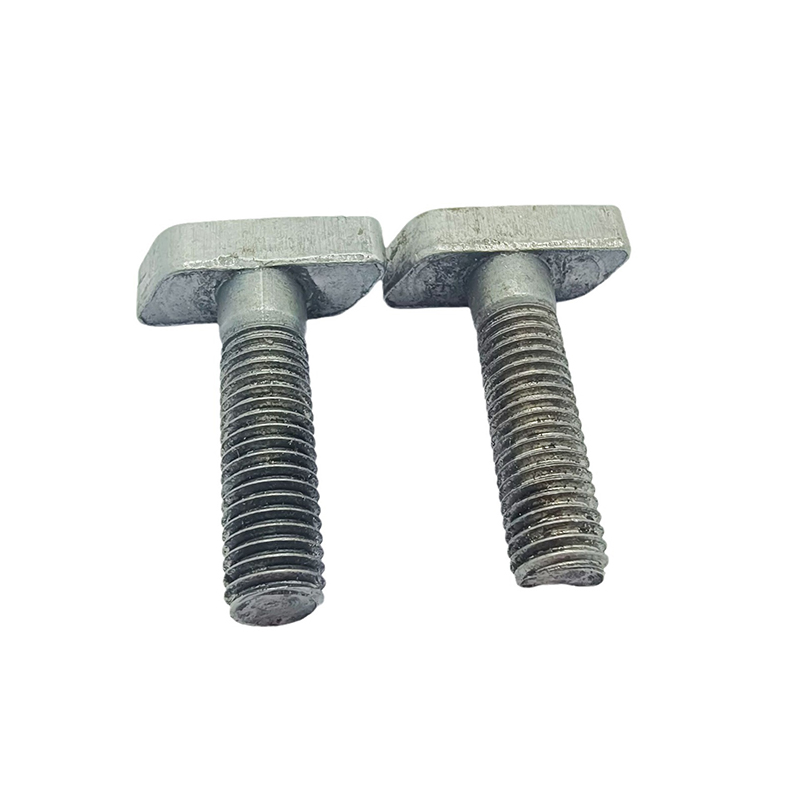

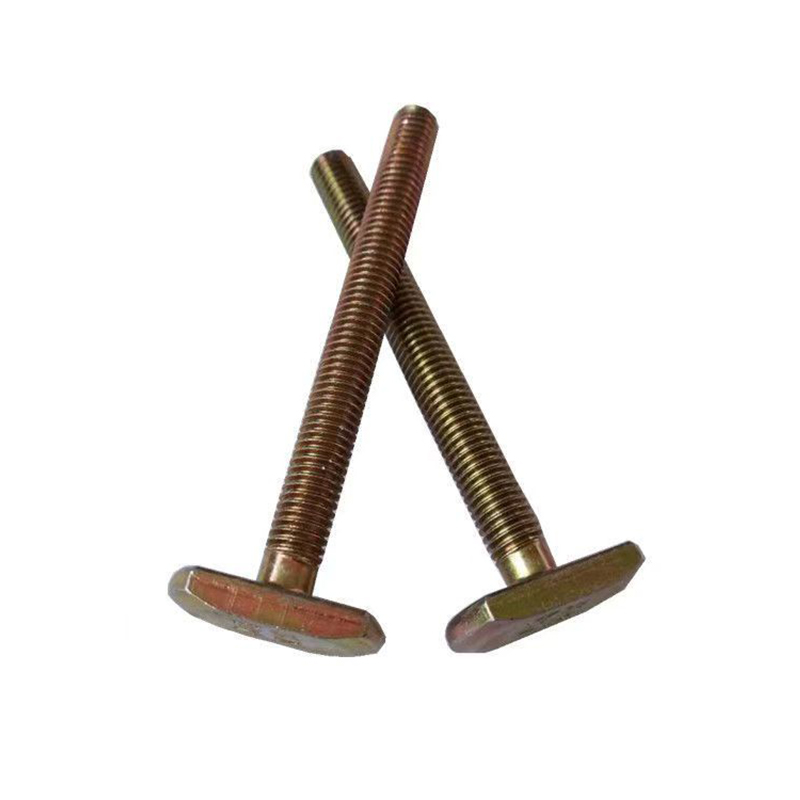

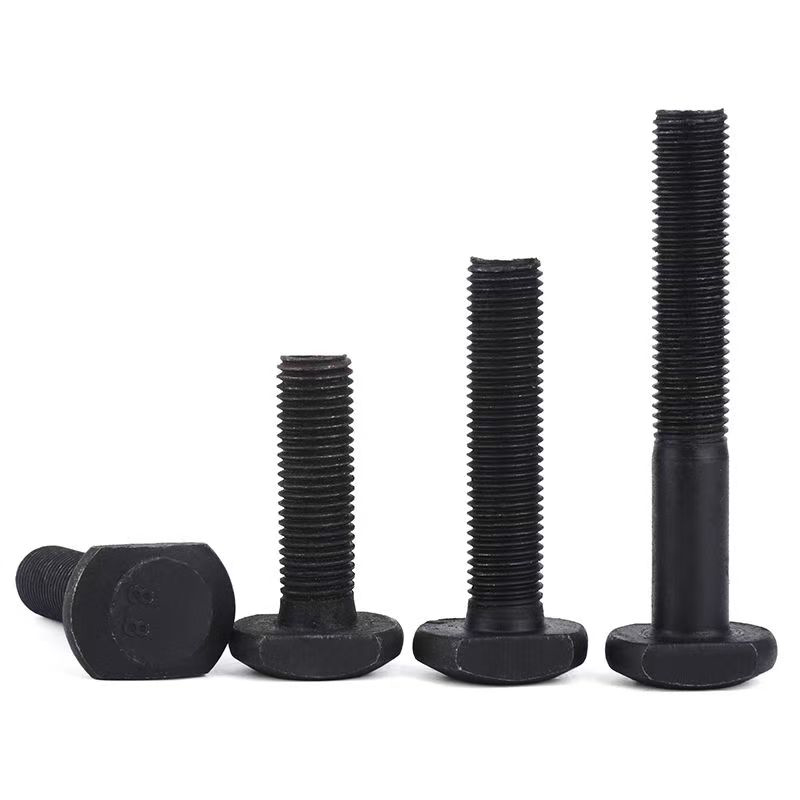

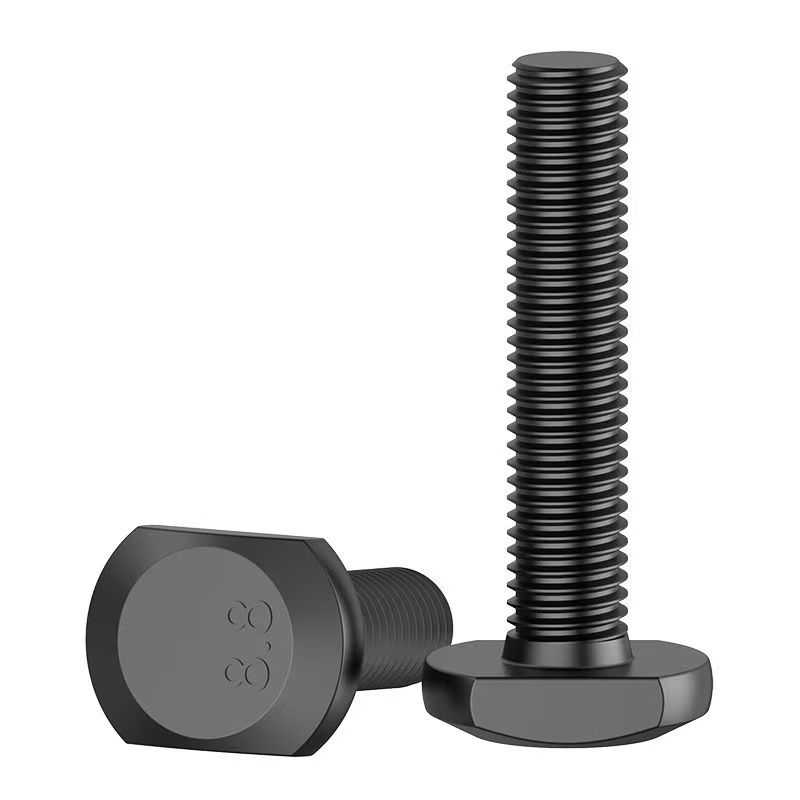

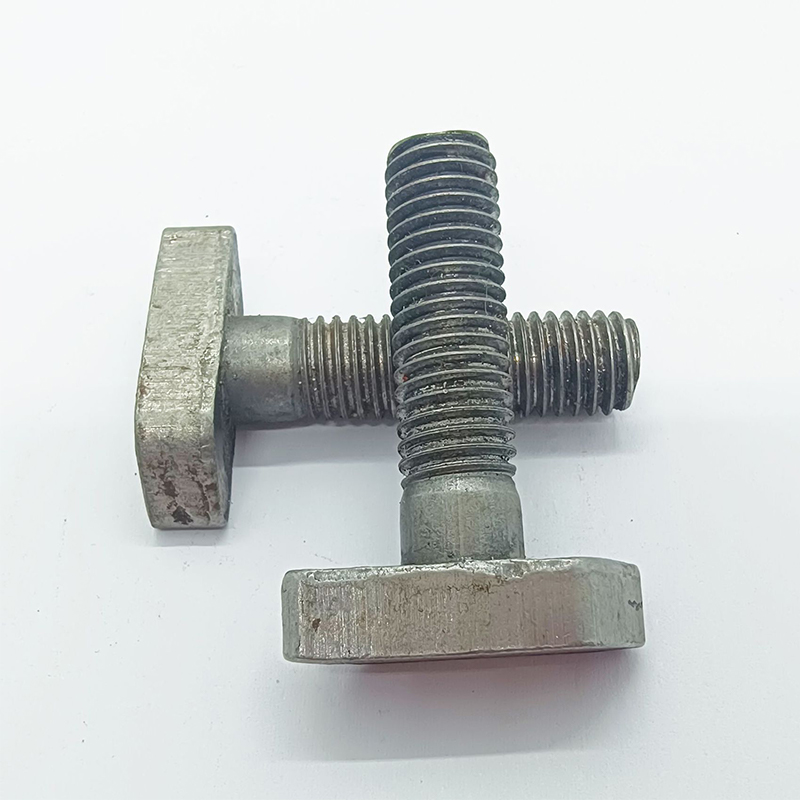

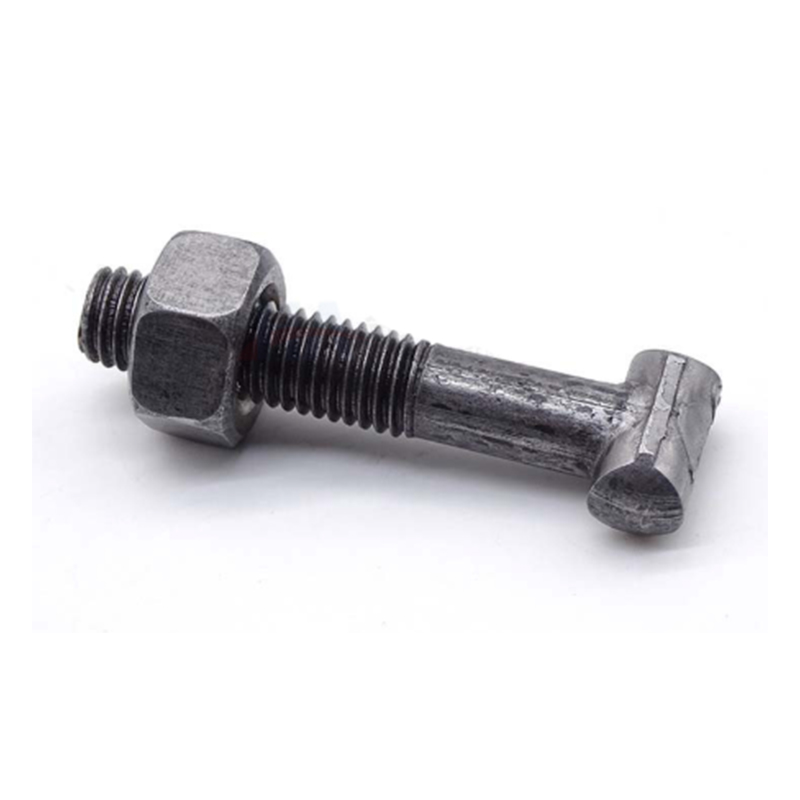

T-bolt (T-slot bolt)
T-bolt is a bolt with a T-shaped head, used with a T-slot (standard DIN 3015-2), and the flange design increases the contact area and can withstand lateral shear force. Common specifications are M10-M48, thickness 8-20mm, and surface phosphating treatment for corrosion resistance.
Description
marker
Product definition and structure
T-bolt is a bolt with a T-shaped head, used with a T-slot (standard DIN 3015-2), and the flange design increases the contact area and can withstand lateral shear force. Common specifications are M10-M48, thickness 8-20mm, and surface phosphating treatment for corrosion resistance.
Core materials and characteristics
Material: Q235 carbon steel (conventional), 35CrMo alloy steel (high strength).
Features:
Quick installation: T-shaped head can slide along the slot for easy position adjustment;
Anti-rotation design: The flange fits the slot wall to prevent the bolt from rotating;
Standardization: Complies with DIN 3015, GB/T 37 and other standards, and is compatible with international general T-slots.
Functions and applicable scenarios
Functions:
Fixed workbenches, guide rails, fixtures and other equipment that require frequent adjustment;
Replace welding for easy disassembly and maintenance.
Scenario:
Mechanical processing (machine tool workbench), automated production line (conveyor line bracket), building curtain wall (aluminum alloy profile connection).
Installation and maintenance
Installation:
Slide the T-shaped head into the groove and rotate the bolt to make the flange fit the groove wall;
Use nuts to tighten, and refer to GB/T 3098.1 for torque (such as the torque value of 8.8-grade bolts).
Maintenance:
Clean up debris in the groove regularly to prevent jamming;
It is recommended to use anti-loosening nuts for high-strength scenes (such as heavy-duty guide rails).
Purchase suggestions
Select materials according to load: Q235 is suitable for static loads, and 35CrMo is suitable for dynamic loads;
Select grade A products (tolerance ±0.1mm) for high-precision equipment.
Guide to Comparing and Selecting Sixteen Major Bolts
| Type | 10.9S large hexagonal bolt | 10.9S shear bolt | T-bolt | U-bolt | Countersunk cross bolt | Butterfly bolt | Flange bolt | Welding nail bolt | Basket bolt | Chemical bolt | Hexagonal bolt series | Carriage bolt | Hexagonal electroplated zinc | Hexagonal colored zinc | Hexagon socket bolt series | Stud bolt |
| Core advantages | Ultra-high strength, friction force transmission | Self-checking, earthquake resistance | Quick installation | Strong adaptability | Beautiful concealed, insulation | Manual convenience | High sealing | High connection strength | Tension adjustment | No expansion stress | Economical and universal | Anti-rotation and anti-theft | Basic anti-corrosion | High corrosion resistance | Beautiful anti-corrosion | High tensile strength |
| Salt spray test | 1000 hours (Dacromet) | 72 hours (galvanized) | 48 hours | 72 hours | 24 hours (galvanized) | 48 hours | 72 hours | 48 hours | 72 hours | 20 years | 24-72 hours | 72 hours | 24-72 hours | 72-120 hours | 48 hours | 48 hours |
| Applicable temperature | -40℃~600℃ | -20℃~200℃ | -20℃~80℃ | -20℃~100℃ | -20℃~100℃ | -20℃~95℃ | -20℃~200℃ | -20℃~200℃ | -20℃~150℃ | -40℃~80℃ | -20℃~80℃ | -20℃~80℃ | -20℃~80℃ | -20℃~100℃ | -20℃~100℃ | -20℃~200℃ |
| Typical scenarios | Steel structures, bridges | High-rise buildings, machinery | T-slots | Pipe fixings | Furniture, electronic equipment | Home appliances, cabinets | Pipe flanges | Steel-concrete connections | Cable wind ropes | Building reinforcement | General machinery, indoor | Wooden structures | General machinery | Outdoor equipment | Precision equipment | Thick plate connection |
| Installation method | Torque wrench | Torque shear wrench | Manual | Nut tightening | Screwdriver | Manual | Torque wrench | Arc welding | Manual adjustment | Chemical anchoring | Torque wrench | Tapping + nut | Torque wrench | Torque wrench | Torque wrench | Nut tightening |
| Environmental protection | Chrome-free Dacromet RoHS compliant | Galvanized RoHS compliant | Phosphating | Galvanized | Plastic RoHS compliant | Plastic RoHS compliant | Galvanized | Heavy metal-free | Galvanized | Solvent-free | Cyanide-free zinc plating RoHS compliant | Galvanized | Cyanide-free zinc plating | Trivalent chromium passivation | Phosphating | No hydrogen embrittlement |
Selection suggestions:
Ultra-high strength requirements: 10.9S large hexagonal bolts, matching steel structure friction type connection;
Seismic and anti-loosening: torsion shear bolts, suitable for equipment foundations with frequent vibrations;
T-slot installation: T-bolts, quick position adjustment;
Pipeline fixing: U-bolts, suitable for different pipe diameters;
Surface flatness requirements: countersunk cross bolts, beautiful and hidden;
Manual tightening: butterfly bolts, no tools required;
High sealing: flange bolts, with gaskets to enhance sealing;
Steel-concrete connection: welding nails, efficient welding;
Tension adjustment: basket bolts, precise control of wire rope tension;
Post-anchoring engineering: chemical bolts, no expansion stress;
General connection: hexagonal bolt series, the first choice for economy;
Wooden structure: carriage bolts, anti-rotation and anti-theft;
Anti-corrosion requirements: hexagonal galvanized bolts, the first choice for outdoor use;
Thick plate connection: stud bolts, suitable for different installation spaces.
