10.9S Torsion Shear Bolts

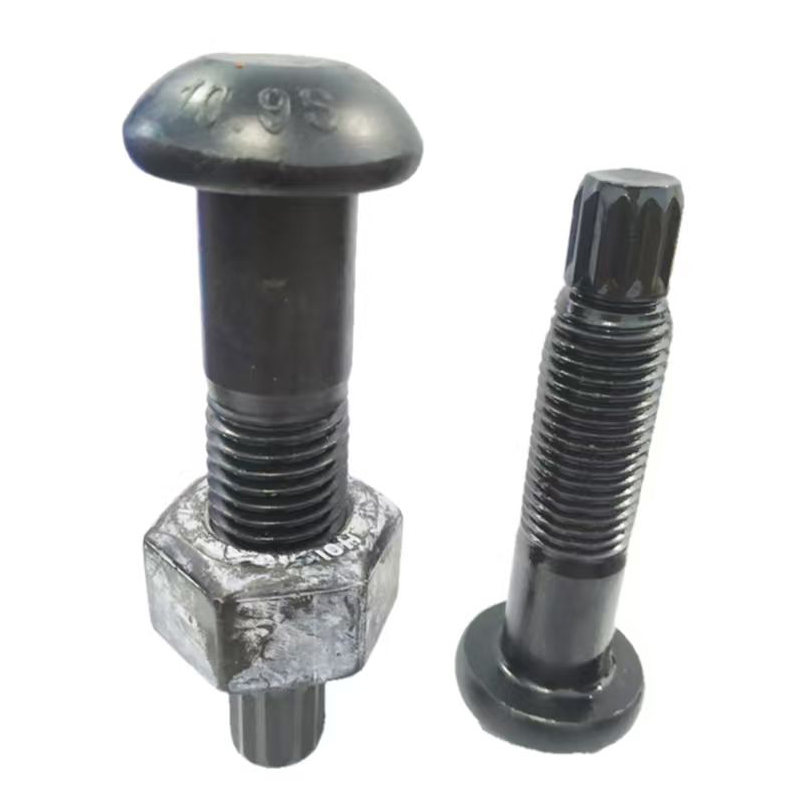

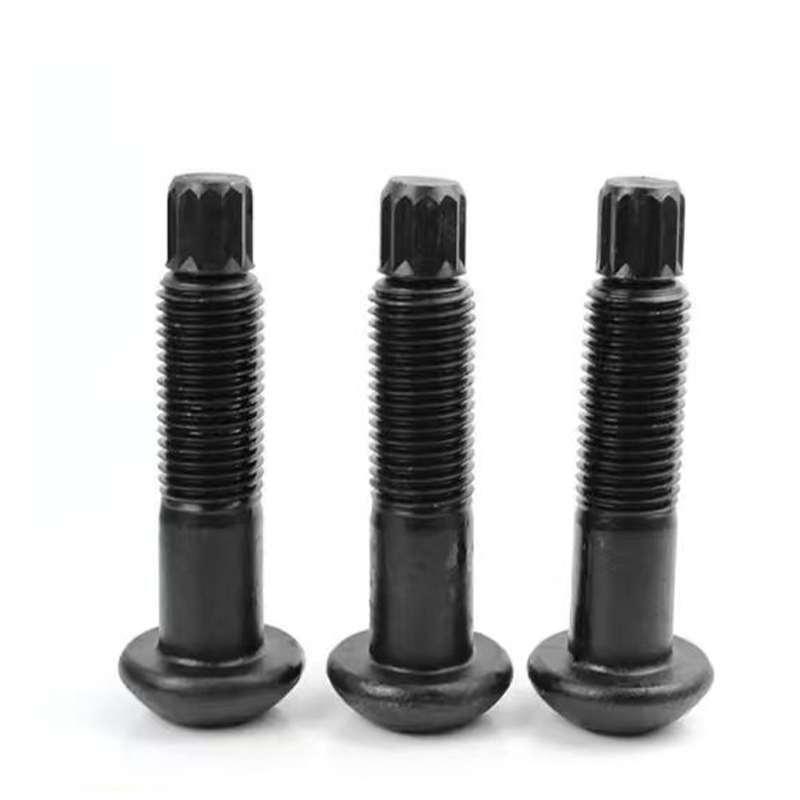

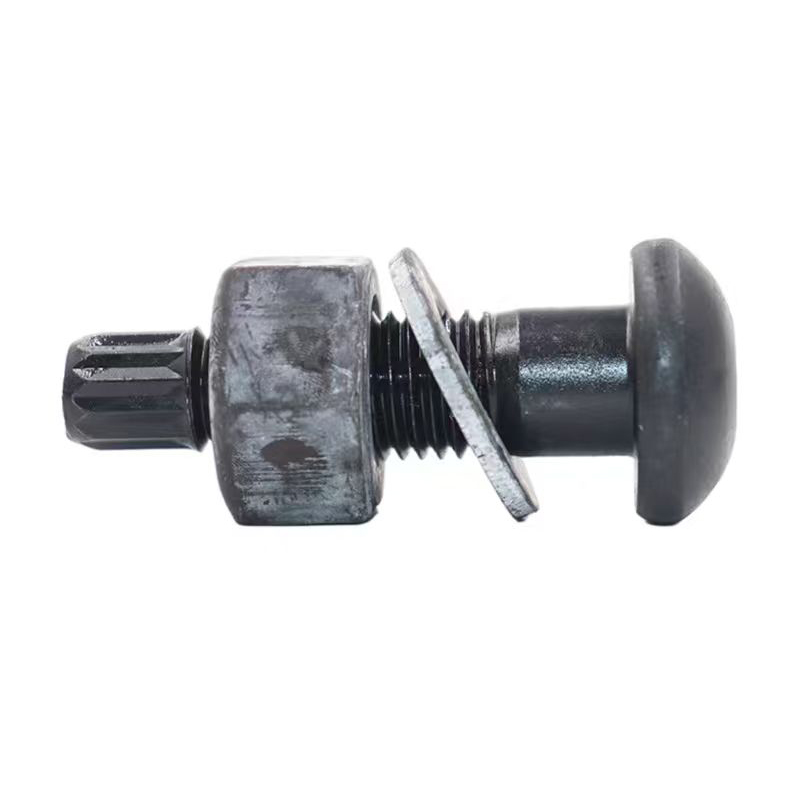

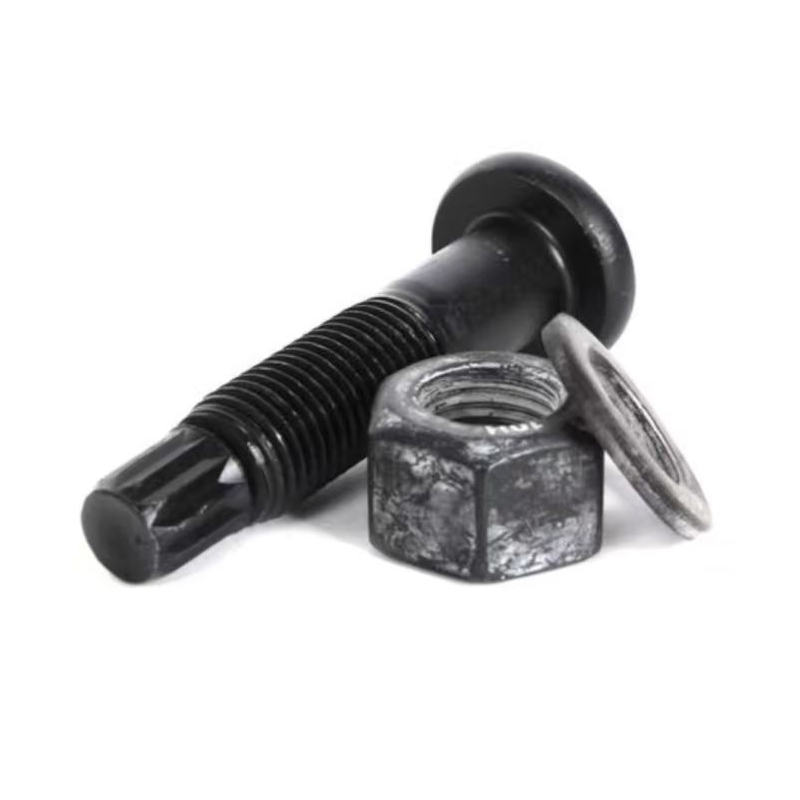

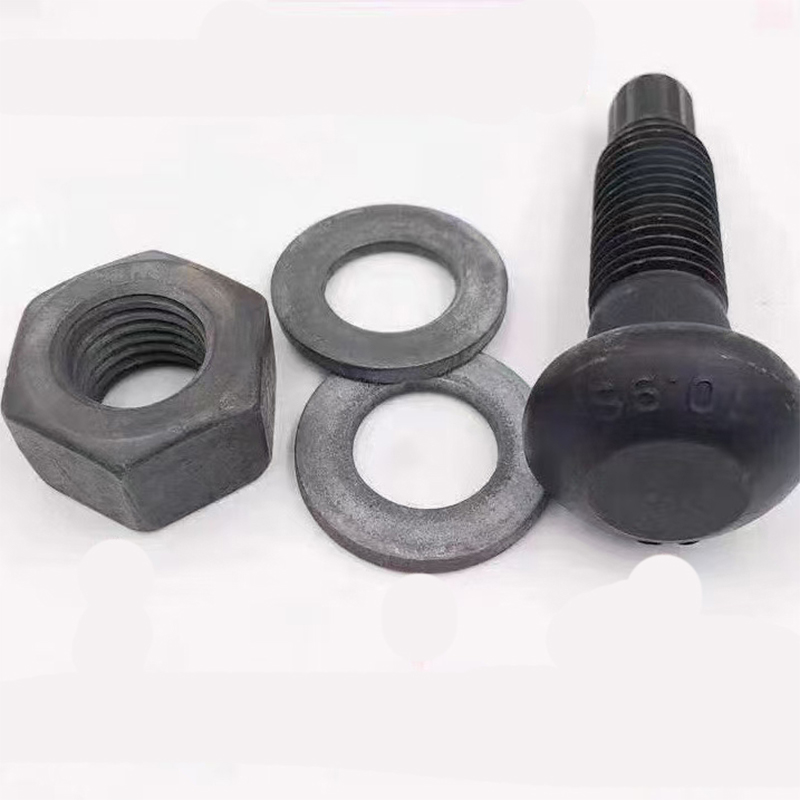

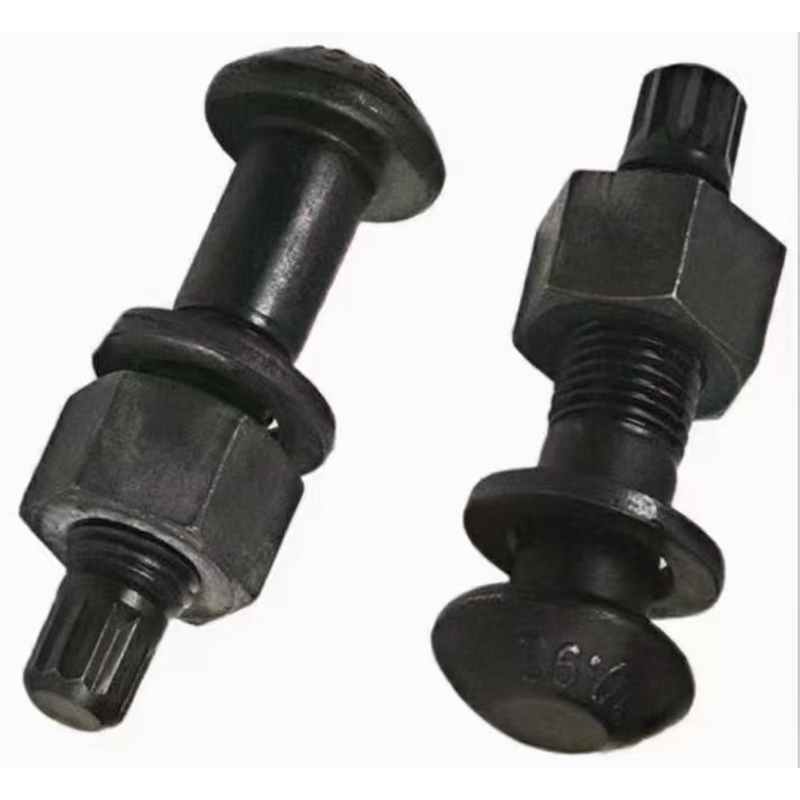

10.9S Torsion Shear Bolts are high-strength bolts designed for steel structures. The preload is controlled by twisting off the plum head at the tail (standard GB/T 3632). Each set includes bolts, nuts, and washers, which need to be manufactured in the same batch to ensure the consistency of mechanical properties.
Description
marker
Product Definition and Core Technology
10.9S Torsion Shear Bolts are high-strength bolts designed for steel structures. The preload is controlled by twisting off the plum head at the tail (standard GB/T 3632). Each set includes bolts, nuts, and washers, which need to be manufactured in the same batch to ensure the consistency of mechanical properties.
Core Materials and Characteristics
Material: 20MnTiB alloy steel, tensile strength ≥1040MPa, yield strength ≥940MPa.
Characteristics:
Self-check function: The twisting off of the plum head indicates that the specified preload has been reached, and no additional testing is required;
Seismic performance: The preload is highly stable and suitable for equipment foundations with frequent vibrations;
Efficient installation: The electric wrench completes the tightening in one go, and the efficiency is twice that of large hexagonal bolts.
Functions and applicable scenarios
Functions:
Fix steel components (such as H-shaped steel beams and columns) to prevent slippage;
Can replace welding and reduce on-site hot work.
Scenarios:
High-rise buildings (steel frame nodes), bridge engineering (box beam splicing), machinery manufacturing (heavy equipment base).
Installation and maintenance
Installation:
Use a special shear wrench to ensure that the torque of the plum head meets the standard (such as the final tightening torque of M20 bolts is 445N・m);
The bolt length needs to reserve 3-5 threads to avoid the plum head not being twisted off.
Maintenance:
It is forbidden to reuse the broken bolts, and the bolt pair needs to be replaced as a whole;
When exposed to a humid environment for a long time, it is recommended to apply an anti-corrosion coating.
Purchase suggestions
Select the wrench model according to the bolt diameter (such as M16-M30 corresponds to different specifications of wrenches);
Preferably choose products with anti-loosening coating to improve long-term stability.
Guide to Comparing and Selecting Sixteen Major Bolts
| Type | 10.9S large hexagonal bolt | 10.9S shear bolt | T-bolt | U-bolt | Countersunk cross bolt | Butterfly bolt | Flange bolt | Welding nail bolt | Basket bolt | Chemical bolt | Hexagonal bolt series | Carriage bolt | Hexagonal electroplated zinc | Hexagonal colored zinc | Hexagon socket bolt series | Stud bolt |
| Core advantages | Ultra-high strength, friction force transmission | Self-checking, earthquake resistance | Quick installation | Strong adaptability | Beautiful concealed, insulation | Manual convenience | High sealing | High connection strength | Tension adjustment | No expansion stress | Economical and universal | Anti-rotation and anti-theft | Basic anti-corrosion | High corrosion resistance | Beautiful anti-corrosion | High tensile strength |
| Salt spray test | 1000 hours (Dacromet) | 72 hours (galvanized) | 48 hours | 72 hours | 24 hours (galvanized) | 48 hours | 72 hours | 48 hours | 72 hours | 20 years | 24-72 hours | 72 hours | 24-72 hours | 72-120 hours | 48 hours | 48 hours |
| Applicable temperature | -40℃~600℃ | -20℃~200℃ | -20℃~80℃ | -20℃~100℃ | -20℃~100℃ | -20℃~95℃ | -20℃~200℃ | -20℃~200℃ | -20℃~150℃ | -40℃~80℃ | -20℃~80℃ | -20℃~80℃ | -20℃~80℃ | -20℃~100℃ | -20℃~100℃ | -20℃~200℃ |
| Typical scenarios | Steel structures, bridges | High-rise buildings, machinery | T-slots | Pipe fixings | Furniture, electronic equipment | Home appliances, cabinets | Pipe flanges | Steel-concrete connections | Cable wind ropes | Building reinforcement | General machinery, indoor | Wooden structures | General machinery | Outdoor equipment | Precision equipment | Thick plate connection |
| Installation method | Torque wrench | Torque shear wrench | Manual | Nut tightening | Screwdriver | Manual | Torque wrench | Arc welding | Manual adjustment | Chemical anchoring | Torque wrench | Tapping + nut | Torque wrench | Torque wrench | Torque wrench | Nut tightening |
| Environmental protection | Chrome-free Dacromet RoHS compliant | Galvanized RoHS compliant | Phosphating | Galvanized | Plastic RoHS compliant | Plastic RoHS compliant | Galvanized | Heavy metal-free | Galvanized | Solvent-free | Cyanide-free zinc plating RoHS compliant | Galvanized | Cyanide-free zinc plating | Trivalent chromium passivation | Phosphating | No hydrogen embrittlement |
Selection suggestions:
Ultra-high strength requirements: 10.9S large hexagonal bolts, matching steel structure friction type connection;
Seismic and anti-loosening: torsion shear bolts, suitable for equipment foundations with frequent vibrations;
T-slot installation: T-bolts, quick position adjustment;
Pipeline fixing: U-bolts, suitable for different pipe diameters;
Surface flatness requirements: countersunk cross bolts, beautiful and hidden;
Manual tightening: butterfly bolts, no tools required;
High sealing: flange bolts, with gaskets to enhance sealing;
Steel-concrete connection: welding nails, efficient welding;
Tension adjustment: basket bolts, precise control of wire rope tension;
Post-anchoring engineering: chemical bolts, no expansion stress;
General connection: hexagonal bolt series, the first choice for economy;
Wooden structure: carriage bolts, anti-rotation and anti-theft;
Anti-corrosion requirements: hexagonal galvanized bolts, the first choice for outdoor use;
Thick plate connection: stud bolts, suitable for different installation spaces.
