Basket bolts

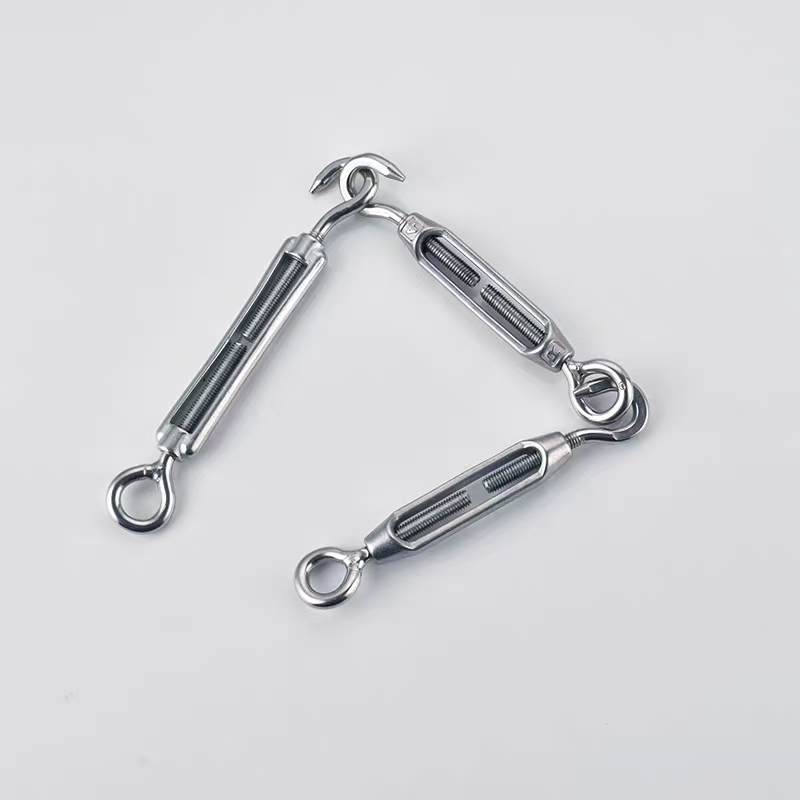

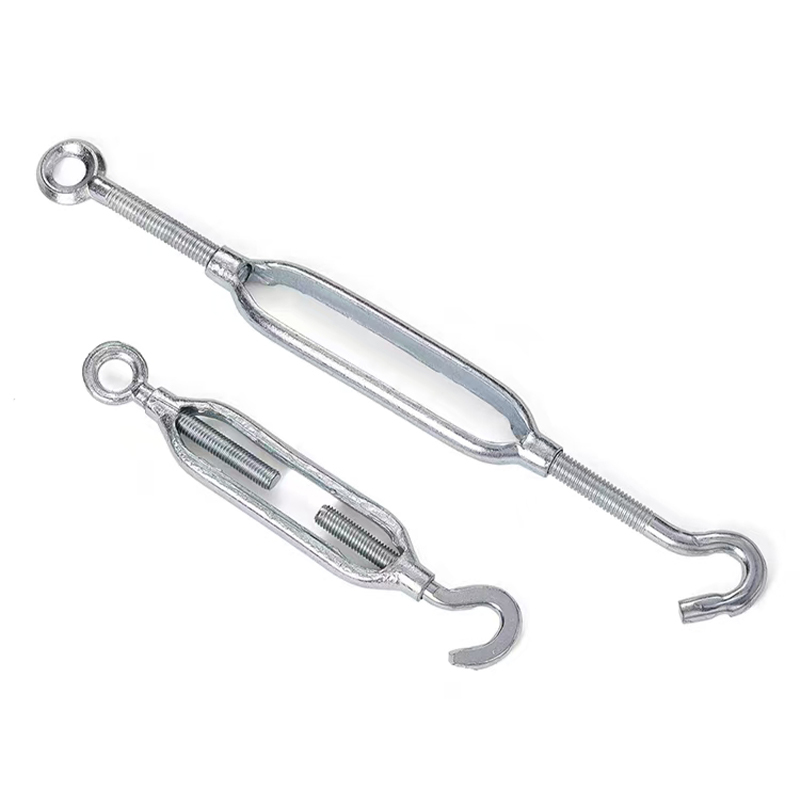

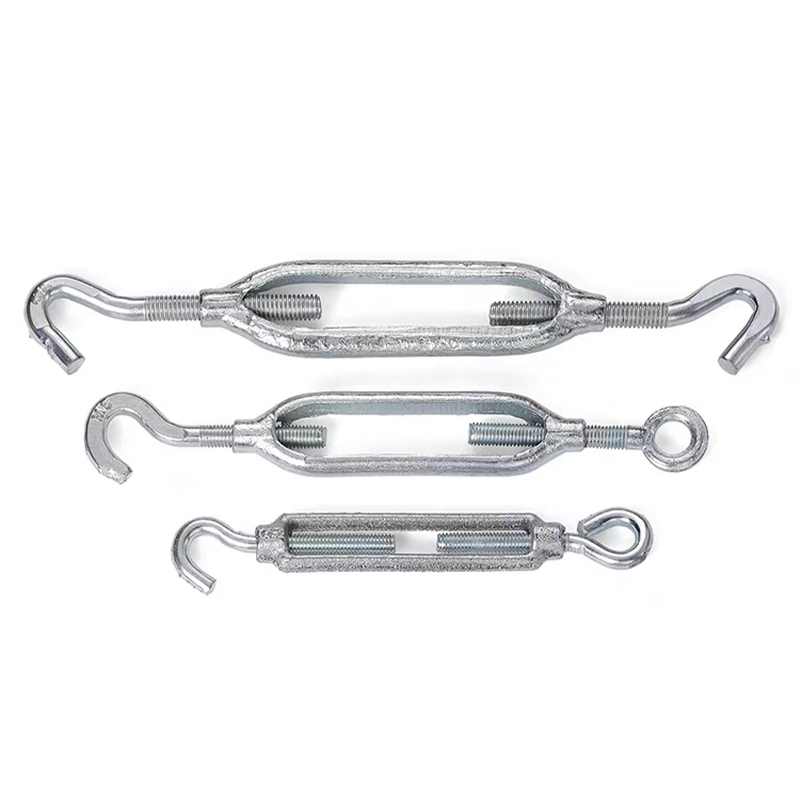

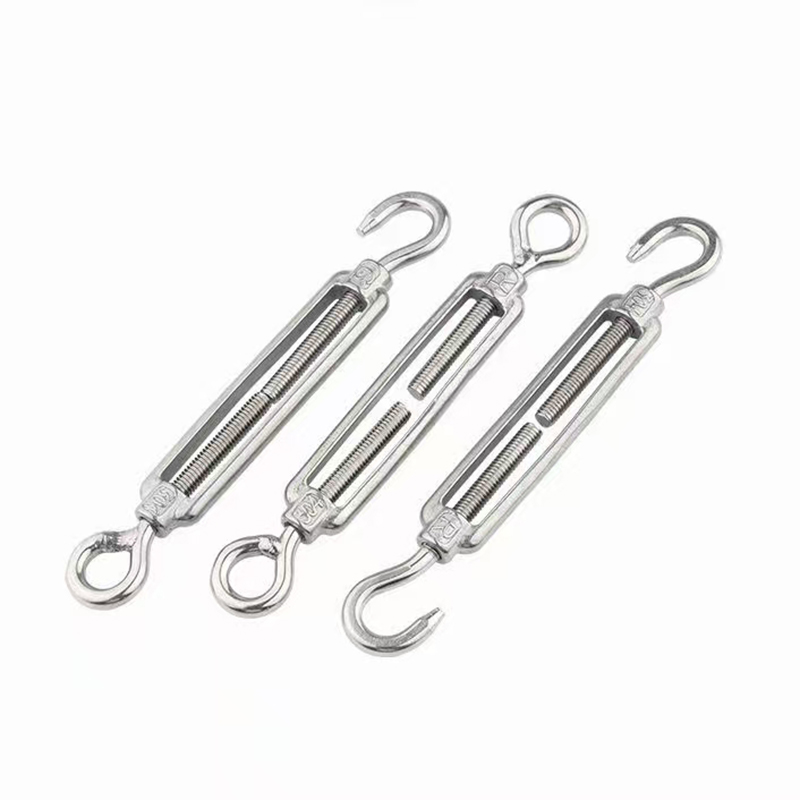

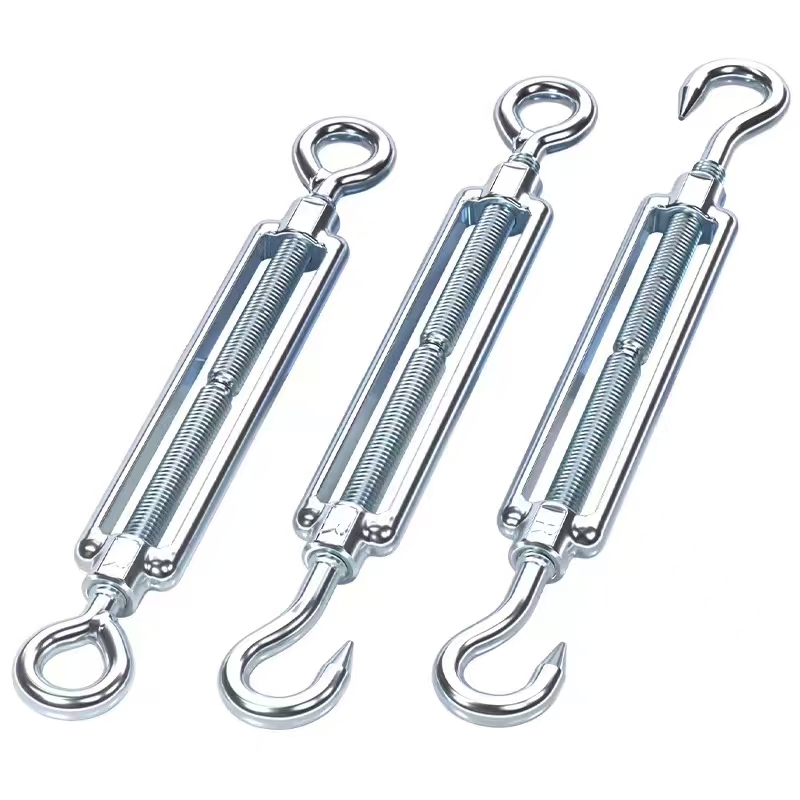

The basket bolt consists of an adjustment rod and a nut with left and right thread, which is used to tighten the wire rope or adjust the tension (standard JB/T 5832). Common materials: Q235 or stainless steel, with galvanized or blackened surface.
Description
marker
Product definition and structure
The basket bolt consists of an adjustment rod and a nut with left and right thread, which is used to tighten the wire rope or adjust the tension (standard JB/T 5832). Common materials: Q235 or stainless steel, with galvanized or blackened surface.
Core materials and features
Material: Q235 carbon steel (conventional), 304 stainless steel (corrosion resistant).
Features:
Tension adjustment: Rotating the adjustment rod can fine-tune the tightness of the wire rope, with an accuracy of ±1mm;
Fatigue resistance: The forging process improves strength and is suitable for high-frequency vibration environments;
Anti-loosening design: Double nuts or stop pins prevent accidental loosening.
Functions and applicable scenarios
Functions:
Fix flexible components such as cable wind ropes and lifting belts;
Adjust the tension of steel structure cables to ensure structural stability.
Scenario:
Construction (tower crane cable wind ropes), power engineering (transmission line tension adjustment), ships (mast fixing).
Installation and maintenance
Installation:
After pre-tightening the wire rope, rotate the adjustment rod to the required tension;
Use double nuts to lock to prevent loosening.
Maintenance:
Regularly check the rust of the basket bolts, and apply zinc-rich paint to the damaged zinc coating;
Avoid using plastic-coated products in high temperature environments (>150℃).
Purchase suggestions
Select specifications according to the diameter of the wire rope (such as Φ20 wire rope matches M22 basket bolts);
For marine environments, choose 316 stainless steel, with nylon coating for corrosion protection.
Guide to Comparing and Selecting Sixteen Major Bolts
| Type | 10.9S large hexagonal bolt | 10.9S shear bolt | T-bolt | U-bolt | Countersunk cross bolt | Butterfly bolt | Flange bolt | Welding nail bolt | Basket bolt | Chemical bolt | Hexagonal bolt series | Carriage bolt | Hexagonal electroplated zinc | Hexagonal colored zinc | Hexagon socket bolt series | Stud bolt |
| Core advantages | Ultra-high strength, friction force transmission | Self-checking, earthquake resistance | Quick installation | Strong adaptability | Beautiful concealed, insulation | Manual convenience | High sealing | High connection strength | Tension adjustment | No expansion stress | Economical and universal | Anti-rotation and anti-theft | Basic anti-corrosion | High corrosion resistance | Beautiful anti-corrosion | High tensile strength |
| Salt spray test | 1000 hours (Dacromet) | 72 hours (galvanized) | 48 hours | 72 hours | 24 hours (galvanized) | 48 hours | 72 hours | 48 hours | 72 hours | 20 years | 24-72 hours | 72 hours | 24-72 hours | 72-120 hours | 48 hours | 48 hours |
| Applicable temperature | -40℃~600℃ | -20℃~200℃ | -20℃~80℃ | -20℃~100℃ | -20℃~100℃ | -20℃~95℃ | -20℃~200℃ | -20℃~200℃ | -20℃~150℃ | -40℃~80℃ | -20℃~80℃ | -20℃~80℃ | -20℃~80℃ | -20℃~100℃ | -20℃~100℃ | -20℃~200℃ |
| Typical scenarios | Steel structures, bridges | High-rise buildings, machinery | T-slots | Pipe fixings | Furniture, electronic equipment | Home appliances, cabinets | Pipe flanges | Steel-concrete connections | Cable wind ropes | Building reinforcement | General machinery, indoor | Wooden structures | General machinery | Outdoor equipment | Precision equipment | Thick plate connection |
| Installation method | Torque wrench | Torque shear wrench | Manual | Nut tightening | Screwdriver | Manual | Torque wrench | Arc welding | Manual adjustment | Chemical anchoring | Torque wrench | Tapping + nut | Torque wrench | Torque wrench | Torque wrench | Nut tightening |
| Environmental protection | Chrome-free Dacromet RoHS compliant | Galvanized RoHS compliant | Phosphating | Galvanized | Plastic RoHS compliant | Plastic RoHS compliant | Galvanized | Heavy metal-free | Galvanized | Solvent-free | Cyanide-free zinc plating RoHS compliant | Galvanized | Cyanide-free zinc plating | Trivalent chromium passivation | Phosphating | No hydrogen embrittlement |
Selection suggestions:
Ultra-high strength requirements: 10.9S large hexagonal bolts, matching steel structure friction type connection;
Seismic and anti-loosening: torsion shear bolts, suitable for equipment foundations with frequent vibrations;
T-slot installation: T-bolts, quick position adjustment;
Pipeline fixing: U-bolts, suitable for different pipe diameters;
Surface flatness requirements: countersunk cross bolts, beautiful and hidden;
Manual tightening: butterfly bolts, no tools required;
High sealing: flange bolts, with gaskets to enhance sealing;
Steel-concrete connection: welding nails, efficient welding;
Tension adjustment: basket bolts, precise control of wire rope tension;
Post-anchoring engineering: chemical bolts, no expansion stress;
General connection: hexagonal bolt series, the first choice for economy;
Wooden structure: carriage bolts, anti-rotation and anti-theft;
Anti-corrosion requirements: hexagonal galvanized bolts, the first choice for outdoor use;
Thick plate connection: stud bolts, suitable for different installation spaces.
