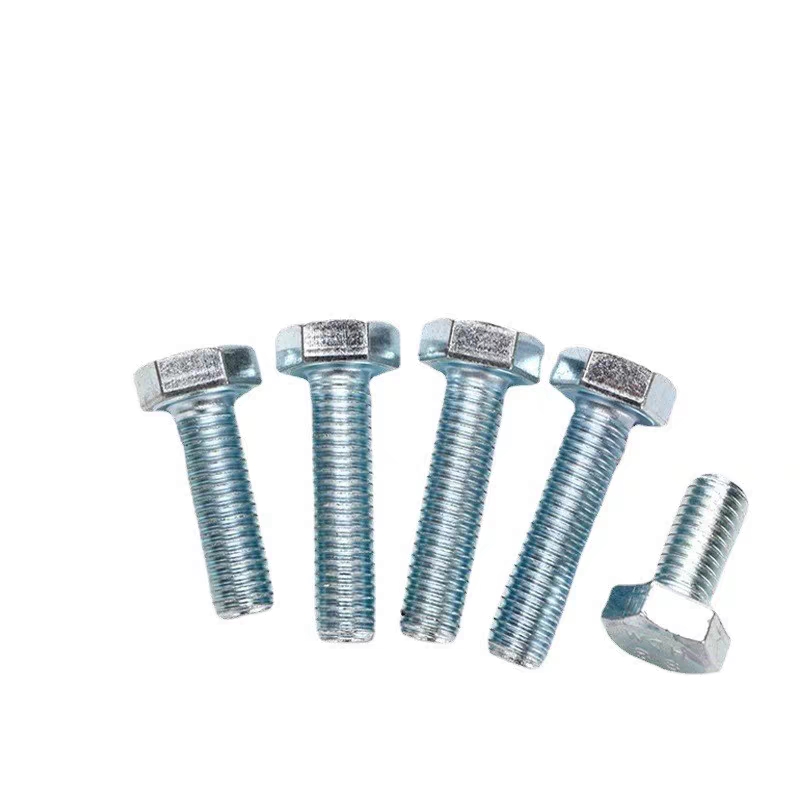

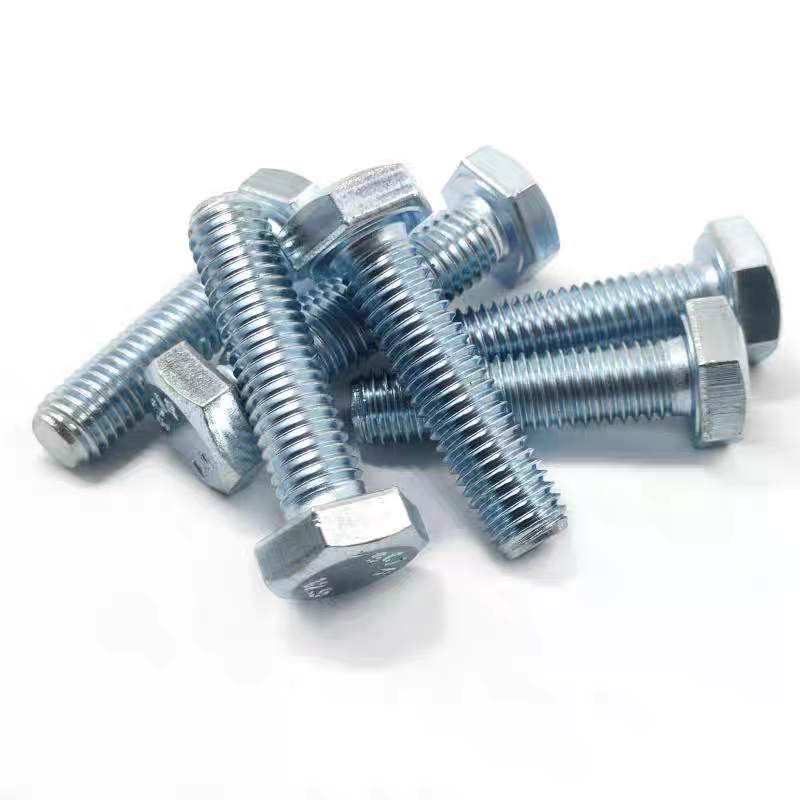

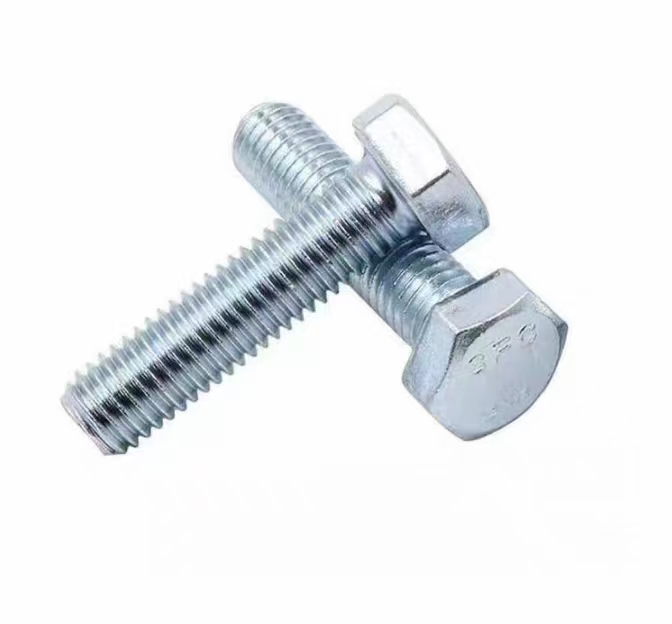

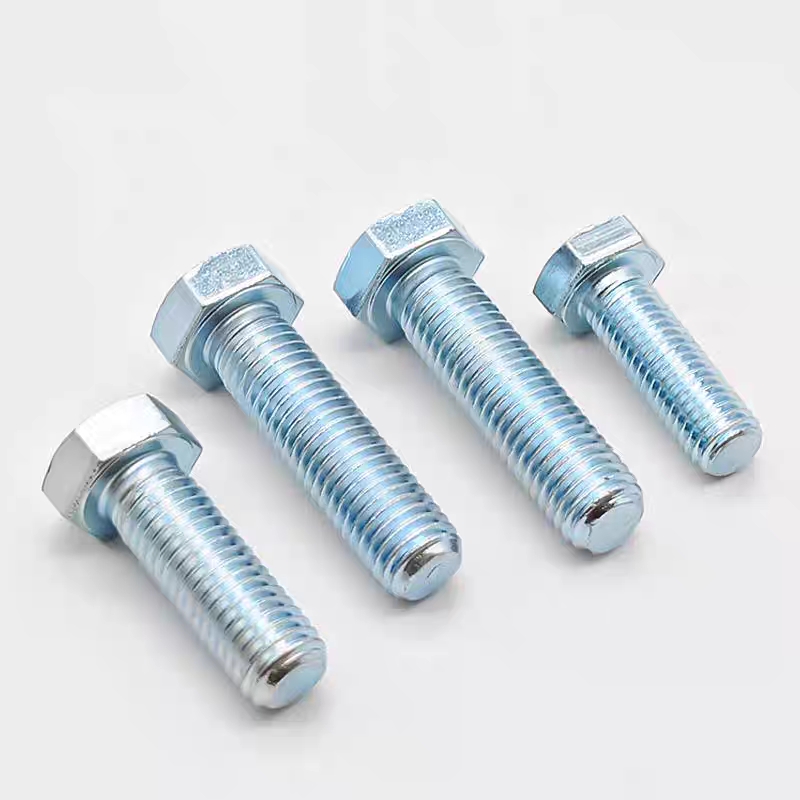

Electrogalvanized hexagonal bolts
Hexagonal bolts are the most common standard bolts with hexagonal heads and are used with nuts (standard GB/T 5780). Common materials are Q235 or 35CrMo, with galvanized or blackened surfaces.
Description
marker
Product definition and structure
Hexagonal bolts are the most common standard bolts with hexagonal heads and are used with nuts (standard GB/T 5780). Common materials are Q235 or 35CrMo, with galvanized or blackened surfaces.
Core materials and characteristics
Material: Q235 carbon steel (grade 4.8), 35CrMo alloy steel (grade 8.8, grade 10.9).
Characteristics:
Economical: low cost, strong versatility, suitable for large-scale procurement;
Compatibility: used with standard nuts and washers, good interchangeability;
Standardization: in line with international standards such as ISO 4014 and DIN 931.
Function and applicable scenarios
Function:
General mechanical connection (such as motor, reducer);
Temporary or semi-permanent installation, easy to disassemble.
Scenario:
Household appliances (washing machines, air conditioners), office equipment (table and chair frames), temporary buildings (scaffolding).
Installation and maintenance
Installation:
Use with standard nuts and tighten according to torque requirements (such as the torque value of 4.8-grade bolts refers to GB/T 3098.2);
Avoid direct contact with active metals such as aluminum and magnesium to prevent galvanic corrosion.
Maintenance:
Check the tightness of the nuts regularly, and the damaged parts of the galvanized layer can be treated with anti-rust spray;
It is recommended to choose Class A products (tolerance ±0.1mm) for high-precision equipment.
Purchase suggestions
Select hot-dip galvanized nuts (salt spray test ≥100 hours) for outdoor or humid environments;
Select 35CrMo material for high-temperature environments (>200℃) and match 10.9-grade bolts.
Guide to Comparing and Selecting Sixteen Major Bolts
| Type | 10.9S large hexagonal bolt | 10.9S shear bolt | T-bolt | U-bolt | Countersunk cross bolt | Butterfly bolt | Flange bolt | Welding nail bolt | Basket bolt | Chemical bolt | Hexagonal bolt series | Carriage bolt | Hexagonal electroplated zinc | Hexagonal colored zinc | Hexagon socket bolt series | Stud bolt |
| Core advantages | Ultra-high strength, friction force transmission | Self-checking, earthquake resistance | Quick installation | Strong adaptability | Beautiful concealed, insulation | Manual convenience | High sealing | High connection strength | Tension adjustment | No expansion stress | Economical and universal | Anti-rotation and anti-theft | Basic anti-corrosion | High corrosion resistance | Beautiful anti-corrosion | High tensile strength |
| Salt spray test | 1000 hours (Dacromet) | 72 hours (galvanized) | 48 hours | 72 hours | 24 hours (galvanized) | 48 hours | 72 hours | 48 hours | 72 hours | 20 years | 24-72 hours | 72 hours | 24-72 hours | 72-120 hours | 48 hours | 48 hours |
| Applicable temperature | -40℃~600℃ | -20℃~200℃ | -20℃~80℃ | -20℃~100℃ | -20℃~100℃ | -20℃~95℃ | -20℃~200℃ | -20℃~200℃ | -20℃~150℃ | -40℃~80℃ | -20℃~80℃ | -20℃~80℃ | -20℃~80℃ | -20℃~100℃ | -20℃~100℃ | -20℃~200℃ |
| Typical scenarios | Steel structures, bridges | High-rise buildings, machinery | T-slots | Pipe fixings | Furniture, electronic equipment | Home appliances, cabinets | Pipe flanges | Steel-concrete connections | Cable wind ropes | Building reinforcement | General machinery, indoor | Wooden structures | General machinery | Outdoor equipment | Precision equipment | Thick plate connection |
| Installation method | Torque wrench | Torque shear wrench | Manual | Nut tightening | Screwdriver | Manual | Torque wrench | Arc welding | Manual adjustment | Chemical anchoring | Torque wrench | Tapping + nut | Torque wrench | Torque wrench | Torque wrench | Nut tightening |
| Environmental protection | Chrome-free Dacromet RoHS compliant | Galvanized RoHS compliant | Phosphating | Galvanized | Plastic RoHS compliant | Plastic RoHS compliant | Galvanized | Heavy metal-free | Galvanized | Solvent-free | Cyanide-free zinc plating RoHS compliant | Galvanized | Cyanide-free zinc plating | Trivalent chromium passivation | Phosphating | No hydrogen embrittlement |
Selection suggestions:
Ultra-high strength requirements: 10.9S large hexagonal bolts, matching steel structure friction type connection;
Seismic and anti-loosening: torsion shear bolts, suitable for equipment foundations with frequent vibrations;
T-slot installation: T-bolts, quick position adjustment;
Pipeline fixing: U-bolts, suitable for different pipe diameters;
Surface flatness requirements: countersunk cross bolts, beautiful and hidden;
Manual tightening: butterfly bolts, no tools required;
High sealing: flange bolts, with gaskets to enhance sealing;
Steel-concrete connection: welding nails, efficient welding;
Tension adjustment: basket bolts, precise control of wire rope tension;
Post-anchoring engineering: chemical bolts, no expansion stress;
General connection: hexagonal bolt series, the first choice for economy;
Wooden structure: carriage bolts, anti-rotation and anti-theft;
Anti-corrosion requirements: hexagonal galvanized bolts, the first choice for outdoor use;
Thick plate connection: stud bolts, suitable for different installation spaces.
