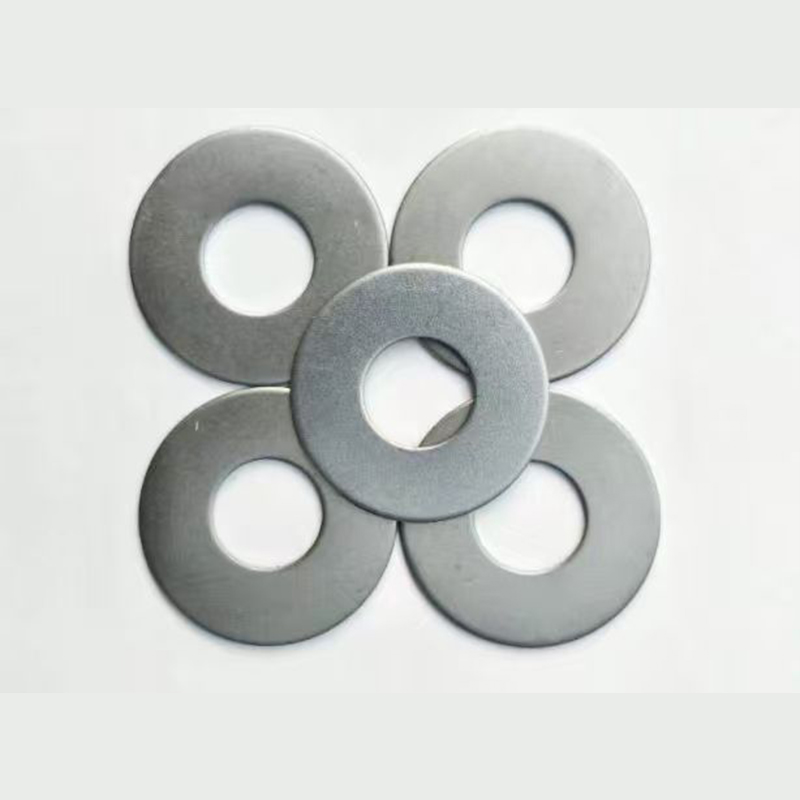

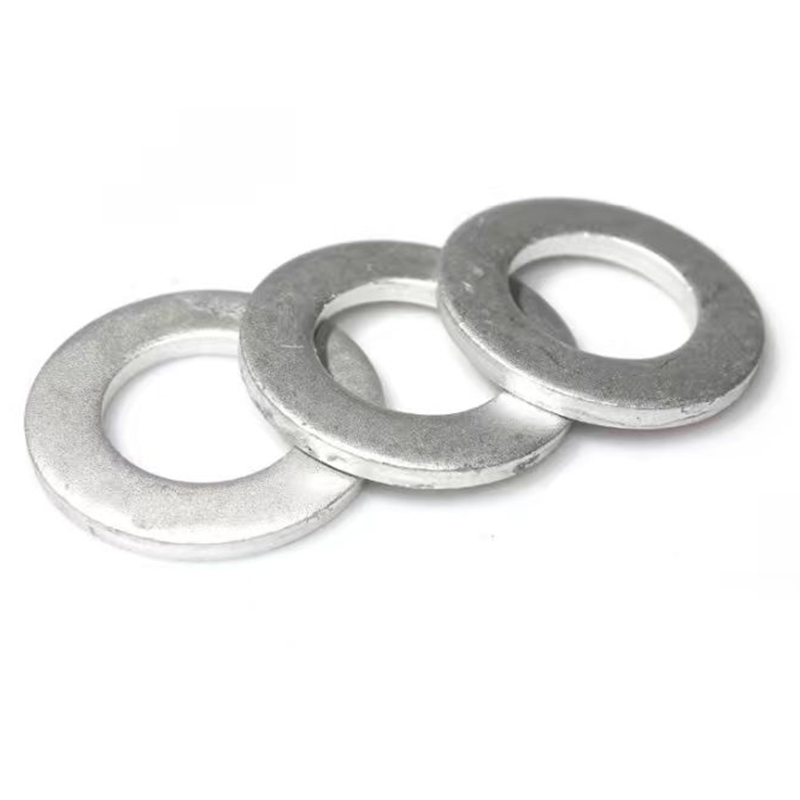

Electroplated galvanized gaskets
Electroplated galvanized gaskets are gaskets that deposit a zinc layer on the surface of carbon steel or alloy steel through an electrolytic process. The thickness of the zinc layer is usually 5-15μm. Its surface is silvery white or bluish white, and it has both anti-corrosion and decorative functions. It is one of the most commonly used surface treatment methods in the industrial field.
Description
marker
Product definition and core technology
Electroplated galvanized gaskets are gaskets that deposit a zinc layer on the surface of carbon steel or alloy steel through an electrolytic process. The thickness of the zinc layer is usually 5-15μm. Its surface is silvery white or bluish white, and it has both anti-corrosion and decorative functions. It is one of the most commonly used surface treatment methods in the industrial field.
Core materials and characteristics
Material: Q235 carbon steel (conventional), 35CrMoA alloy steel (high strength), the substrate hardness is usually HV100-200.
Features:
Basic anti-corrosion: Neutral salt spray test 24-72 hours without white rust, suitable for indoor dry environment;
Economical: low cost, mature technology, suitable for large-scale production;
Compatibility: good combination with a variety of coatings (such as paint), can be repainted.
Function and applicable scenarios
Function:
Prevent gaskets from direct contact with connecting parts to avoid electrochemical corrosion;
Disperse bolt preload and protect the surface of connected parts.
Scenario:
General machinery (such as motors, reducers), building steel structures (bolt connections), automotive parts (chassis fixing).
Installation and maintenance
Installation:
When used with standard bolts, tighten according to torque requirements (such as the torque value of 8.8-grade bolts refers to GB/T 3098.1);
Avoid sharp tools from scratching the coating to prevent local corrosion.
Maintenance:
Regularly check the integrity of the coating, and zinc-rich paint can be used to repair damaged areas;
When exposed to a humid environment for a long time, it is recommended to use anti-rust oil.
Purchase suggestions
Select the coating thickness according to the environmental corrosiveness: 5-8μm for indoor equipment and 8-12μm for outdoor equipment;
Preferably choose cyanide-free zinc plating process, which complies with environmental protection standards such as RoHS 2.0.
Comparison and selection guide of three major gaskets
| Type | Electroplated galvanized gasket | Colored galvanized gasket | High-strength blackened gasket |
| Core advantages | Low cost, strong versatility | High corrosion resistance, color identification | High strength, high temperature resistance |
| Salt spray test | 24-72 hours without white rust | 72-120 hours without white rust | 48 hours without red rust |
| Applicable temperature | -20℃~80℃ | -20℃~100℃ | -40℃~200℃ |
| Typical scenarios | Ordinary machinery, indoor environment | Outdoor equipment, humid environment | Engine, vibration equipment |
| Environmental protection | Cyanide-free process complies with RoHS | Hexavalent chromium must comply with REACH, trivalent chromium is more environmentally friendly | No heavy metal pollution |
Selection suggestions:
Economic needs: Electroplated galvanized gaskets, suitable for ordinary industrial scenarios;
High corrosion environment: Colored galvanized gaskets, give priority to chromium-free passivation process;
High load/high temperature scenario: High-strength blackened gaskets, matching bolt strength grade (such as 42CrMo for 10.9 grade bolts gasket).
contact us
Related popular products
10.9S large hexagon bolts
10.9S large hexagon bolts are the core components of high-strength friction-type connections. They are composed of bolts, nuts, and double washers (standard GB/T 1228). The tensile strength reaches 1000MPa and the yield strength is 900MPa. Its surface treatment adopts Dacromet or multi-alloy co-penetration technology, and the salt spray test exceeds 1000 hours. It is suitable for extreme environments such as oceans and high temperatures.
Electrogalvanized pins
GB/T 882-2008 “Pin” standard, nominal diameter 3-100mm, materials include carbon steel, stainless steel, etc., electrogalvanized layer thickness 5-12μm, in line with c1B or c1A post-treatment requirements.
Colored galvanized hexagonal drill tail wire
Rainbow chromate passivation (c2C) on the basis of electrogalvanizing, coating thickness 8-15μm, salt spray test for more than 72 hours. When using trivalent chromium passivation process, it complies with RoHS environmental protection directive, and the hexavalent chromium content is ≤1000ppm.
U-bolts
U-bolts are U-shaped with threads at both ends, and are used to fix cylindrical objects such as pipes and plates (standard JB/ZQ 4321). Common specifications are M6-M64, made of carbon steel or stainless steel, with galvanized or blackened surface.
Welded plate anchor (welded plate anchor bolt)
The welded plate anchor consists of a threaded rod, a welded pad and a stiffening rib. The pad is fixed with bolts by welding to form an integrated structure of “bolt + pad”. The pad increases the contact area with the concrete, disperses the load and improves stability.
Carriage bolt (half-round head square neck bolt)
The head of the carriage bolt is a large semicircle, and the neck is square to prevent rotation (standard GB/T 14). Common materials are Q235 or stainless steel, with galvanized or blackened surface.
Electro-galvanized hexagonal drill thread
Made of 1022A carbon steel, the surface hardness reaches HV560-750 after heat treatment, and the core hardness reaches HV240-450. The surface is electro-galvanized to form a 5-12μm coating, which meets the GB/T 13912-2002 standard, and the salt spray test reaches 24-48 hours without white rust.
Basket bolts
The basket bolt consists of an adjustment rod and a nut with left and right thread, which is used to tighten the wire rope or adjust the tension (standard JB/T 5832). Common materials: Q235 or stainless steel, with galvanized or blackened surface.
Colored zinc-plated expansion bolts
The color zinc passivation process (c2C) is adopted, the coating thickness is 8-15μm, and the corrosion resistance of the salt spray test is more than 72 hours, which has both anti-corrosion and decorative functions.
Hot-dip galvanized embedded plate
Same as electrogalvanized embedded plate, using Q235 or Q355 carbon steel, steel plate thickness 8-50mm, anchor bar diameter 10-32mm, in line with GB/T 700 standard.
Hot-dip galvanized hexagonal bolts
Hexagonal bolts are the most common standard bolts with hexagonal heads and are used with nuts (standard GB/T 5780). Common materials are Q235 or 35CrMo, with galvanized or blackened surfaces.
Colored zinc flange bolts
The head of the flange bolt has a round flange to increase the contact area and disperse the pressure (standard GB/T 5787, GB/T 5789). Common specifications M6-M30, material Q235 or 35CrMo, surface galvanized or blackened.
Colored zinc plated hexagonal bolts
Hexagonal bolts are the most common standard bolts with hexagonal heads and are used with nuts (standard GB/T 5780). Common materials are Q235 or 35CrMo, with galvanized or blackened surfaces.

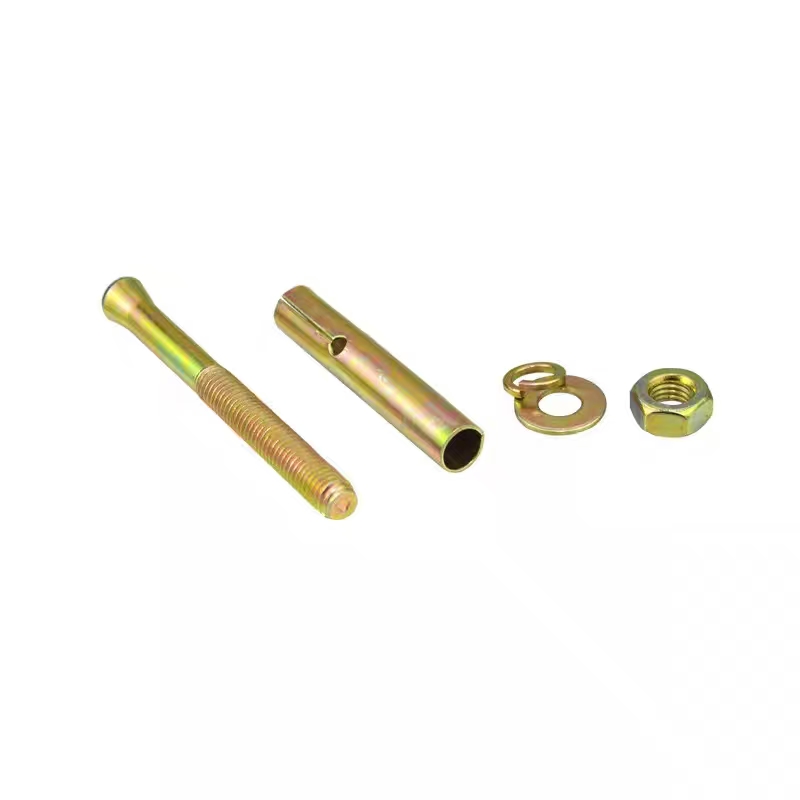

Electrogalvanized expansion bolts
