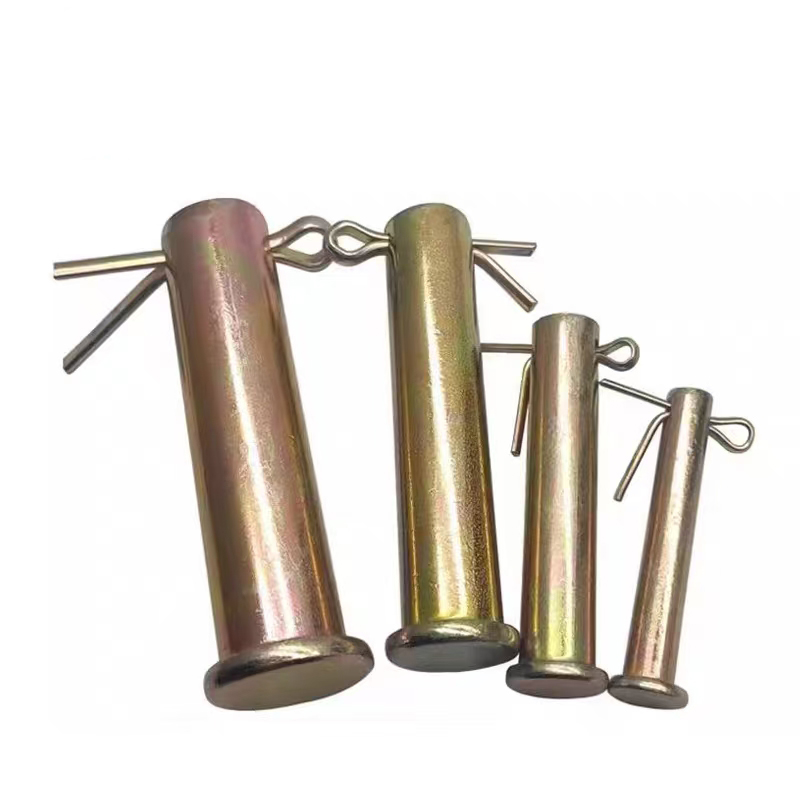

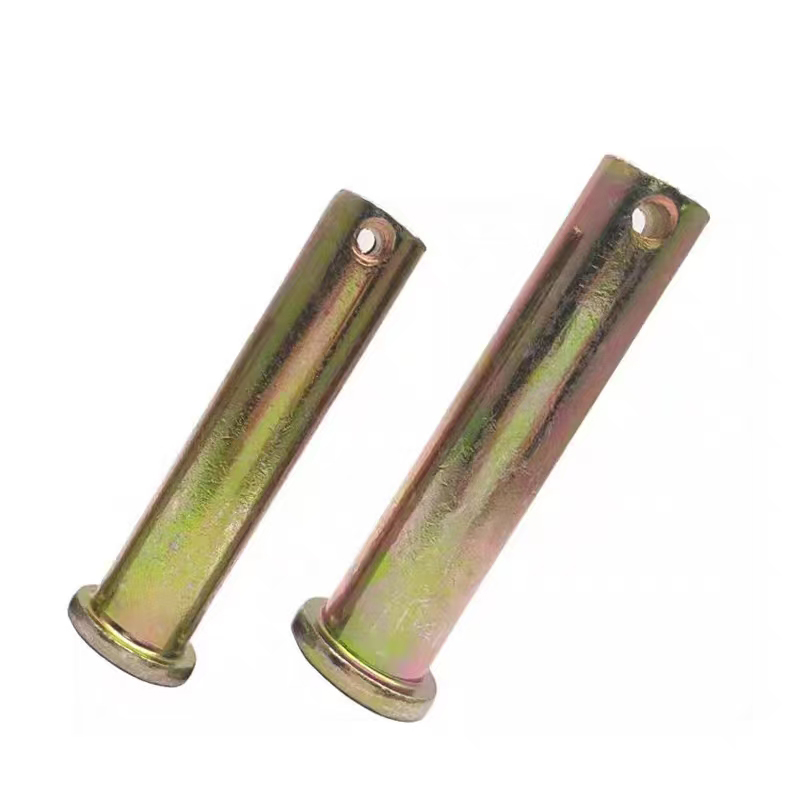

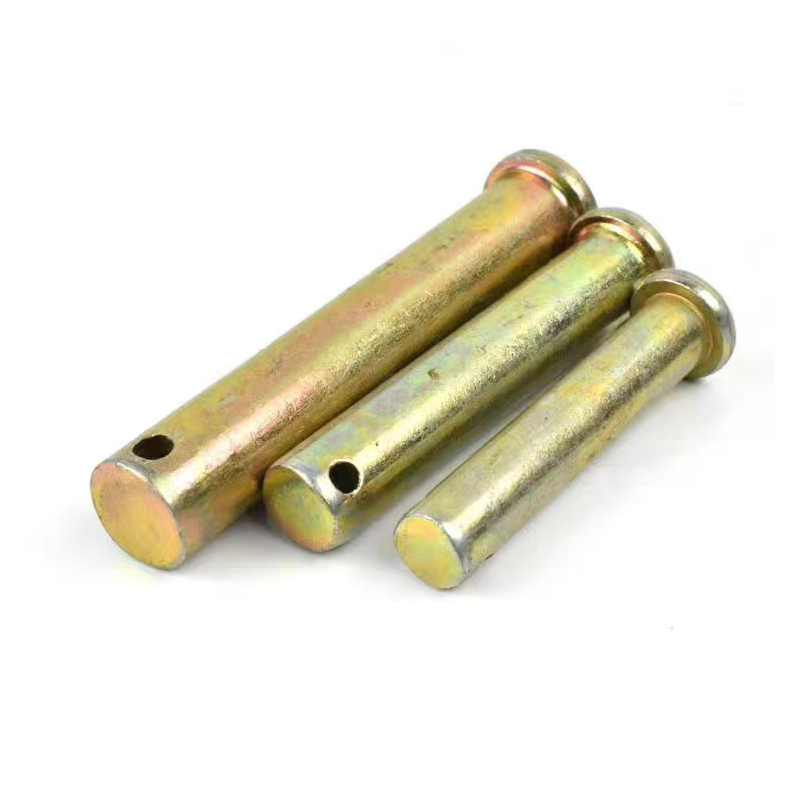

Colored zinc-plated pins
Use colored zinc passivation (c2C), coating thickness 8-15μm, salt spray test can reach more than 72 hours, colorful appearance, better anti-corrosion performance.
Description
marker
Product Introduction
Surface treatment: Use colored zinc passivation (c2C), coating thickness 8-15μm, salt spray test can reach more than 72 hours, colorful appearance, better anti-corrosion performance.
Application: Commonly used in outdoor machinery, automobile manufacturing and other fields, such as automobile wiper blade connection, mining gantry bracket anti-break pin structure, etc., which need to take into account both anti-corrosion and aesthetic scenes.
Surface treatment comparison and selection suggestions
| Treatment process | Color | Thickness range | Salt spray test | Corrosion resistance | Wear resistance | Main application scenarios |
| Electrogalvanizing | Silvery white / blue-white | 5-12μm | 24-48 hours | General | Medium | Indoor dry environment, ordinary mechanical connection |
| Colored zinc plating | Rainbow color | 8-15μm | More than 72 hours | Good | Medium | Outdoor, humid or mildly corrosive environment |
| Black zinc plating | Black | 10-15μm | More than 96 hours | Excellent | Good | High temperature, high humidity or decorative scenes |
Selection suggestions:
Environmental factors: Colored zinc plating or black zinc plating is preferred in humid or industrial environments; electrogalvanizing can be selected in dry indoor environments.
Load requirements: For high-load scenarios, it is necessary to select expansion bolts of appropriate grades (such as 8.8 or above) according to the specification table, and pay attention to the impact of the galvanizing process on mechanical properties (such as hot-dip galvanizing may cause a decrease in tensile strength of about 5-10%).
Environmental requirements: Colored zinc plating and black zinc plating may contain hexavalent chromium and must comply with environmental directives such as RoHS; cold galvanizing (electrogalvanizing) has better environmental performance and does not contain heavy metals.
Appearance requirements: Colored zinc plating or black zinc plating is preferred for decorative scenes, and electrogalvanizing can be selected for general industrial use.
